High Quality Packing Christmas Colored White Kraft Paper Bag with Window and Zipper Making Machine
Basic Info.
Model NO. | DC-SC-600C+FD |
Speed | High |
Continuous-Rolled | Yes |
Sealing & Cutting | Heat-Sealing Heat-Cutting |
Layer | Single |
Machine Type | Bag Forming Machine |
Computerized | Computerized |
Type | Plastic Bag Making Machine |
Version | Automatic |
Total Power | 18.5kw |
Bag Making Speed | 600PCS/Min |
Subtype | Biodegradable Bag Making Machine |
Material | Plastic |
Machinery | Plastic Package Making Machinery |
Transport Package | Wooden Case |
Specification | 8000*1850*1800 mm |
Trademark | TINUO |
Origin | Zhejiang |
HS Code | 8422400090 |
Production Capacity | 10 Sets Per Month |
Product Description

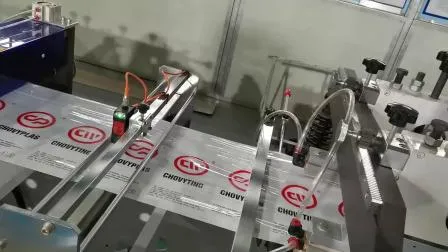

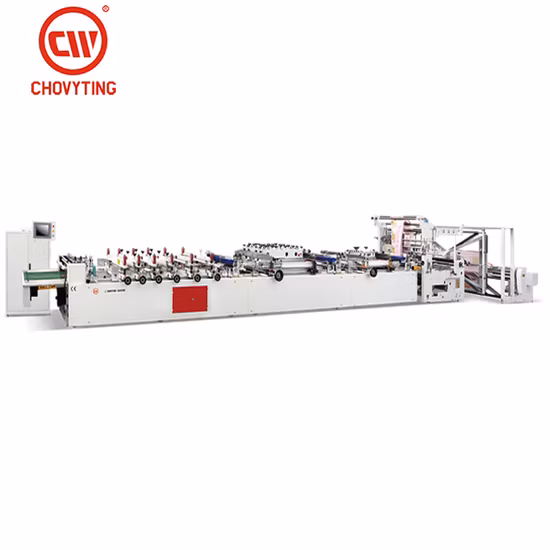

Product DescriptionDC-SC-600C+FD Newly design multifunction laminated bag making machine, it can manufacture 3 side sealing bag, 3 side sealing with zipper bag,single film insert stand up and third film insert stand up bag. Easy to operate, fast to change different type bag making device.
Brief Introduction
Newly design multifunction laminated bag making machine, it can manufacture 3 side sealing bag, 3 side sealing with zipper bag, single film insert stand up bag and third film insert stand up bag. Easy to operate, fast to change different type bag making device.
Features1 It adopts JAPAN YASKAWA servo motor system2 EPC control maintain the stability of film feeding3 Multifunction of bag making: three side sealing bag making, stand up bag making(with zipper)4 Easy to change the function
Product Parameters
Model | DC-600C+FD | DC-500ZF+SZ | DC-600ZF+SZ | DC-400MCP | |
Width of unwinding | 1200mm | 1000mm | 1200mm | 800mm | |
Pouch-making height | 3 Sides seal/Centerseal | 50-380mmxN (N≤6) | |||
Stand up & zipper bag | 100-500mm(G=70) | 100-350mm (G=70) | |||
Pouch-making Width | 3 Sides seal | 70-580mm | 100-350mm | 100-350mm | |
4 Sides seal[G middle/G unwinder) | 100-300/380mm | 100-350/430mm | |||
Center seal | 100-450mm | 100-550mm | 50-350mm | ||
Center gusset seal | 100-330mm [G=60x2] | 100-430mm (G=60x2) | |||
Stand up & zipper bag | 70-260mm | 70-260 mm | 70-260mm | ||
Speed | 100-170pcs/min | 100-170pcs/min | 100-170pcs/min | 100-170pcs/min | |
Line speed | 35m/min | 35m/min | 35m/min | 35m/min | |
Total Power | 48kw | 34kw | 34kw | 25kw | |
Weight of Machine | 4800kg | 4200kg | 4500kg | 2800kg | |
Overall Dimension | 12.5 x 2.4 x 2m | 10 x 1.8 x 1.7m | 10 x 2 x 1.7m | 6.5 x 1.6 x 1.7m |

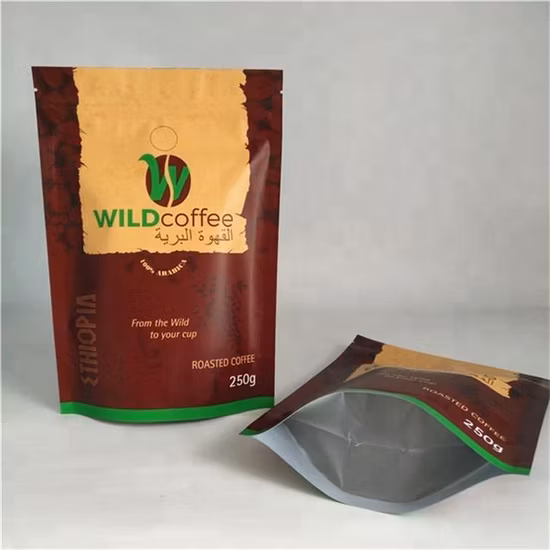

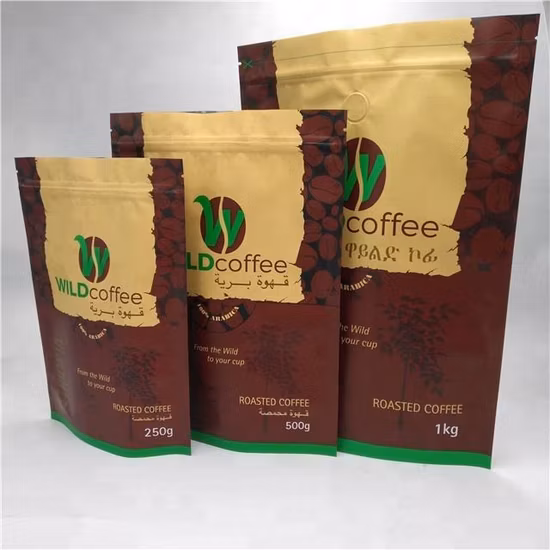

Doypack/stand up zipper pouchLeft bag / singel web stand up zipper pouchRight bag / Another film gusset in the bottom ,with round corner punch and double cut get the notch-less pouch Check the doypack bottomAlumimum foil is as another film gusset in the bottom,The orange pouch bottom is from single web film. Grape pouch / fruit pouch used for packing fruit like apple or grapeExtra add the following opitonal device1/ V punch for bottom 2/ Multi-holes punch (continous type or interminent type)3/ D shape handle pouch4/ Automatic Slider applicator5/ Double cut system This type bag widely used in American,Meixco,Chile,Peru,Colombia
Q1. How to install and operate the machine?We will show you with English introduction menu and video of machine, or send technician to your factory to train your workers.Q2. What should we charge for your engineer?You should cover engineers' salary, visa cost, air tickets, accommodations, transportation in buyers' country, food, medical care, safety cost, and related cost happens in buyers' country.Q3. How long is your machine's warranty period?All our machine have one year guarantee, starting from finished installation.Q4. How do we solve the machine problem after your engineer leaving?Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our after sales specialist at any time. Engineers will help to take a solution video according your description.
